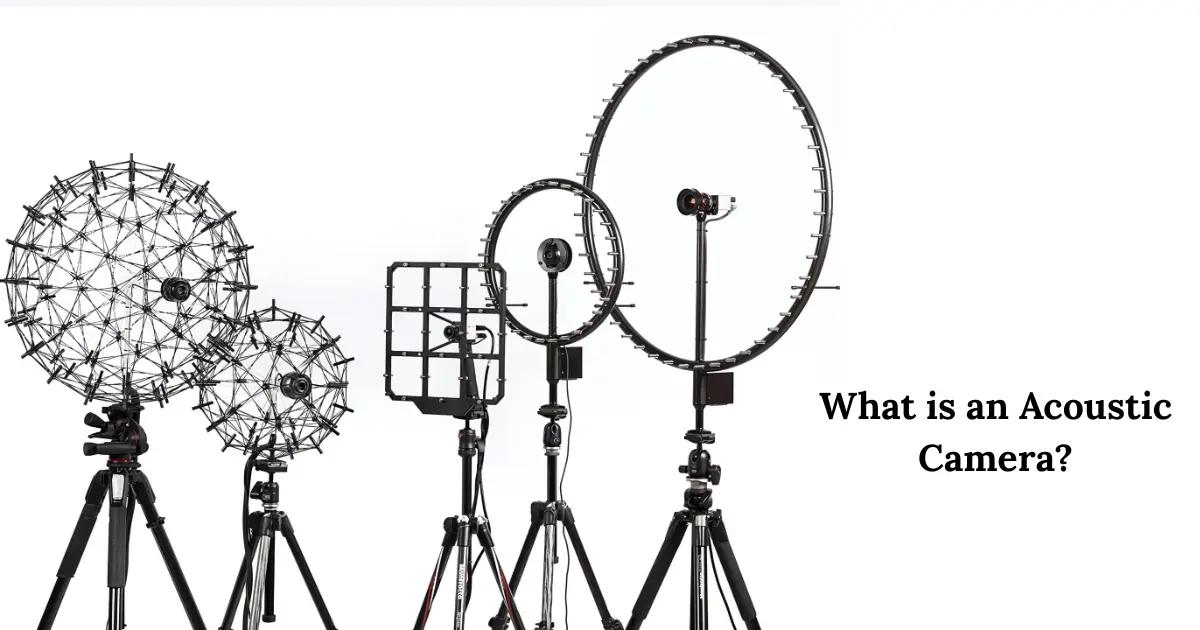

What is an Acoustic Camera? Complete Guide to Sound Visualization Technology

The modern world is filled with an invisible symphony of sounds – from the hum of industrial machinery to the whistle of wind turbines, the rumble of traffic to the buzz of electrical equipment. While we can hear these sounds, pinpointing their exact sources has traditionally been a challenging and time-consuming process that often relied on guesswork and manual investigation. Enter the acoustic camera, a revolutionary piece of technology that makes the invisible visible by transforming sound waves into colorful, intuitive visual maps.

Unlike conventional sound measurement tools that provide only numerical readings, acoustic cameras combine advanced beamforming technology with sophisticated microphone arrays to create real-time, thermal-imaging-style visualizations of sound sources. This breakthrough technology has revolutionized industries ranging from automotive manufacturing to environmental noise control, enabling engineers and technicians to identify problematic noise sources within seconds rather than hours.

The implications are profound: manufacturing facilities can quickly locate inefficient machinery, automotive engineers can pinpoint wind noise in vehicle designs, and environmental consultants can identify the dominant contributors to community noise pollution. What once required extensive manual investigation with traditional sound meters can now be accomplished with the point-and-shoot simplicity of taking a photograph.

In this comprehensive guide, you'll discover:

Whether you're an engineer evaluating noise control solutions, a facility manager seeking to reduce operational noise, or simply curious about this fascinating technology, this guide will equip you with the knowledge to understand and leverage acoustic cameras effectively.

An acoustic camera is a sophisticated measurement instrument that visualizes sound sources by converting acoustic energy into color-coded images, similar to how thermal cameras reveal heat patterns. At its core, this technology combines an array of precisely positioned microphones with an optical camera to create real-time "sound pictures" that show exactly where noise originates in a visual scene.

The fundamental principle revolves around beamforming technology – a signal processing technique that analyzes the tiny time differences between when sound waves reach each microphone in the array. By calculating these microsecond delays, the system can triangulate the exact location of sound sources and map their intensity levels using a color spectrum, typically ranging from blue (quiet) to red (loud).

Unlike traditional sound level meters that provide only overall decibel readings from a single point, acoustic cameras deliver spatial acoustic intelligence. They reveal not just how loud sounds are, but precisely where multiple sound sources are located within a measurement field, their relative contributions to overall noise levels, and how these sources interact in complex acoustic environments.

The technology excels at solving what acousticians call the "cocktail party problem" – the challenge of isolating and identifying individual sound sources within a cacophony of overlapping noises. A manufacturing facility might have dozens of machines operating simultaneously, but an acoustic camera can instantly distinguish between a problematic bearing in one motor, normal operational noise from another, and background ventilation sounds.

Modern acoustic cameras operate across frequency ranges from 20 Hz to 20 kHz (covering the full spectrum of human hearing), with some specialized models extending into ultrasonic ranges up to 80 kHz for applications like compressed air leak detection. The visual output resembles thermal imaging, where sound pressure levels are represented by color intensity – creating an intuitive interface that requires minimal acoustic expertise to interpret.

This real-time visualization capability transforms acoustic troubleshooting from a time-intensive detective process into an immediate diagnostic tool, making acoustic cameras indispensable for noise control engineering, product development, and environmental compliance across numerous industries.

The magic behind acoustic cameras lies in a sophisticated signal processing technique called beamforming, which transforms the complex mathematics of sound wave propagation into intuitive visual representations. Understanding this process reveals why acoustic cameras represent such a significant advancement over traditional acoustic measurement methods.

When a sound source emits acoustic energy, the sound waves travel outward at approximately 343 meters per second (at room temperature). These waves reach each microphone in the array at slightly different times – a phenomenon that creates measurable time delays or phase differences between channels. The acoustic camera's processing system captures these minute timing variations and uses them to calculate the precise location of the sound source.

The system continuously calculates the geometric distance from each microphone to every point of interest in the measurement field. For a point source at coordinates (x, y, z), the absolute runtime to microphone 'i' is determined by τi = |ri|/v, where |ri| represents the physical distance and 'v' is the speed of sound. The relative delays (Δi = τi - min(τi)) are then used to synchronize and sum the signals from all microphones.

This process occurs thousands of times per second across a grid of measurement points, creating a comprehensive acoustic map of the entire field of view. The computational intensity explains why modern acoustic cameras require powerful dedicated processors and why real-time analysis was impossible until recent advances in digital signal processing technology.

The processed acoustic data undergoes transformation into effective sound pressure levels using RMS (Root Mean Square) calculations. These values are then mapped to a color spectrum using customizable scales, typically following this progression:

The synchronized optical camera captures high-resolution images simultaneously with acoustic measurements, enabling automatic overlay of sound maps onto visual scenes. This fusion requires precise calibration to ensure spatial accuracy – the acoustic "hot spots" must align perfectly with their physical sources in the visual image.

Advanced systems employ pixel-perfect registration algorithms that account for lens distortion, perspective correction, and geometric calibration between the microphone array coordinate system and the optical camera's field of view. This integration transforms abstract acoustic data into immediately actionable visual intelligence.

Beyond basic sound pressure mapping, modern acoustic cameras perform real-time frequency analysis, allowing users to isolate specific frequency bands and observe how different sound sources contribute across the acoustic spectrum. This capability proves invaluable for identifying the acoustic signatures of specific machinery types, distinguishing between mechanical noise and aerodynamic sources, or focusing on frequency ranges relevant to specific applications or regulations.

The entire process – from sound capture through beamforming calculations to visual display – typically occurs with latency measured in milliseconds, enabling true real-time acoustic imaging that responds instantly to changing sound conditions.

The acoustic camera market encompasses a diverse range of specialized instruments, each engineered for specific applications and measurement environments. Understanding these variations is crucial for selecting the optimal system for your particular needs, as the choice between different configurations can significantly impact measurement accuracy, portability, and functionality.

Handheld acoustic cameras represent the most versatile and user-friendly category, designed for field measurements and general-purpose noise source identification. These systems typically feature 32 to 112 microphones arranged in compact arrays, offering excellent portability without sacrificing measurement capability.

These portable units excel in troubleshooting applications where mobility is paramount – from automotive test tracks to industrial facility walk-throughs. Leading examples include the Fluke Si124 and CAE Systems' Bionic M-112, both featuring ruggedized designs capable of withstanding harsh industrial environments.

For permanent installation or laboratory environments, fixed-mount acoustic cameras offer superior precision and extended functionality. These systems typically employ 256+ microphones in large-format arrays, providing enhanced spatial resolution and frequency range coverage.

Fixed installations shine in applications requiring continuous monitoring, such as manufacturing quality control, environmental compliance monitoring, or research facilities conducting long-term acoustic studies. The stationary configuration enables precise calibration and consistent measurement conditions, critical for comparative analyses and trend monitoring.

Traditional acoustic cameras project sound sources onto virtual 2D planes, but three-dimensional acoustic mapping represents the cutting edge of sound visualization technology. These advanced systems require specialized spherical or omnidirectional microphone arrays capable of beamforming in all spatial directions simultaneously.

Underwater acoustic cameras address the unique challenges of aquatic environments where traditional optical cameras fail due to limited visibility. These specialized systems operate at lower frequencies (typically 1-100 kHz) optimized for underwater sound propagation characteristics.

Applications span from marine biology research and underwater infrastructure inspection to submarine navigation and offshore energy installations. The technology proves particularly valuable for sonar-based object detection and underwater noise pollution assessment in marine protected areas.

The fundamental difference between spherical and planar array configurations determines the acoustic camera's spatial capabilities:

Planar Arrays:

Spherical Arrays:

Modern acoustic cameras offer two primary operational modes:

Real-Time Processing enables immediate visualization during measurement, essential for interactive troubleshooting and live demonstrations. However, computational limitations may restrict the maximum resolution or frequency analysis depth.

Post-Processing Systems capture raw acoustic data for later analysis, enabling more sophisticated algorithms, higher spatial resolution, and detailed frequency analysis. This approach suits research applications and comprehensive acoustic assessments where immediate results are less critical than ultimate accuracy.

The choice between these modes often depends on the specific application requirements – field troubleshooting typically demands real-time capability, while research and development applications may prioritize the analytical depth possible through post-processing workflows.

The acoustic camera market is dominated by several established manufacturers, each offering distinct advantages in terms of technology, applications, and value propositions. Understanding the competitive landscape enables informed decision-making when investing in these sophisticated instruments, which typically represent significant capital expenditures for organizations.

Fluke Corporation has revolutionized acoustic camera accessibility with their Si124 Acoustic Imager, designed specifically for industrial maintenance and facility management applications. This handheld system features 124 digital MEMS microphones arranged in a lightweight, ergonomic form factor that prioritizes ease of use without compromising measurement capability.

Fluke's strength lies in their maintenance-focused approach, with specialized algorithms for compressed air leak detection, electrical discharge identification, and mechanical bearing analysis. The system excels in industrial environments where technicians need immediate, actionable results without extensive acoustic expertise.

Norsonic (part of Cirrus Research) offers the Nor848A Acoustic Camera, representing the premium tier of environmental noise analysis instruments. This Norwegian-engineered system features 128 or 384 microphones in precision-matched arrays, delivering exceptional accuracy for environmental compliance and research applications.

The Nor848A distinguishes itself through meteorological compensation algorithms that account for wind, temperature, and humidity effects on acoustic measurements – critical for outdoor environmental assessments. Advanced features include automated background noise subtraction and long-term averaging capabilities essential for regulatory compliance documentation.

Typical Applications:

Brüel & Kjær represents the gold standard for acoustic research instrumentation, with their acoustic camera systems featuring unmatched measurement precision and comprehensive analysis capabilities. Their modular approach allows customization from basic handheld units to sophisticated multi-array research installations.

B&K's acoustic cameras integrate seamlessly with their extensive measurement ecosystem, including sound level meters, vibration analyzers, and electroacoustic testing equipment. This interoperability proves invaluable for comprehensive product development and regulatory testing workflows.

FLIR Systems leverages their thermal imaging expertise to create unique dual-mode acoustic cameras that simultaneously capture thermal and acoustic signatures. This innovative approach proves particularly valuable for electrical equipment inspection, where thermal and acoustic anomalies often correlate.

The FLIR approach excels in preventive maintenance applications, where electrical discharge, bearing wear, and thermal issues manifest through both acoustic and thermal signatures. Their integrated analysis software correlates these measurements, providing comprehensive equipment health assessments.

CAE Software & Systems (now part of the Society for Applied Computer Science) developed the Bionic M-112, featuring 112 microphones in a sophisticated beamforming array optimized for automotive and aerospace applications.

This system pioneered 3D acoustic mapping capabilities, enabling sound source visualization onto complex CAD models – revolutionary for interior noise analysis in vehicles and aircraft. The advanced software suite includes specialized modules for moving source tracking and real-time spectral analysis.

HikMicro has entered the acoustic camera market with cost-effective alternatives targeting the growing industrial IoT sector. Their systems emphasize wireless connectivity and cloud-based analysis, appealing to organizations implementing Industry 4.0 strategies.

Sorama offers innovative 64-microphone arrays with emphasis on automated analysis and artificial intelligence integration, targeting applications where traditional acoustic expertise may be limited.

For Industrial Maintenance: Fluke Si124 offers the optimal balance of capability, ease of use, and value For Environmental Consulting: Norsonic Nor848A provides the precision and compliance features required For Research Applications: B&K systems deliver the measurement uncertainty and flexibility needed For Electrical Applications: FLIR's thermal integration provides unique diagnostic capabilities For Automotive/Aerospace: CAE's 3D mapping capabilities prove indispensable for complex interior analysis

The acoustic camera market continues evolving rapidly, with emerging technologies like AI-powered analysis, smartphone integration, and IoT connectivity reshaping traditional measurement paradigms. Organizations should consider both current needs and future technological directions when making investment decisions in this dynamic field.

Acoustic cameras have fundamentally transformed industrial noise control and facility management by converting complex acoustic challenges into straightforward visual problem-solving exercises. Their ability to instantly pinpoint noise sources within complicated industrial environments has made them indispensable tools across manufacturing, automotive, and building systems applications.

Modern manufacturing facilities present uniquely challenging acoustic environments where dozens of machines, ventilation systems, and process equipment operate simultaneously. Traditional troubleshooting methods required extensive manual investigation with sound level meters, often taking hours or days to isolate problematic equipment.

Real-World Case Study: Industrial Plant Noise Reduction

A comprehensive study conducted at a European manufacturing facility demonstrates the practical value of acoustic camera technology. Researchers used a CAE Bionic M-112 acoustic camera to identify three primary noise sources contributing to community complaints:

The acoustic camera enabled immediate identification of dominant noise sources that were not obvious through conventional assessment. Most significantly, the highest flow-rate fan (Source Z3) was not the loudest contributor – a counterintuitive finding that would have been difficult to discover without visual acoustic mapping.

Industrial acoustic cameras excel at distinguishing between normal operational noise and problematic acoustic sources within complex soundscapes. Common applications include:

Bearing and Mechanical Failure Detection:

Process Equipment Optimization:

Manufacturing facilities must increasingly demonstrate compliance with stringent environmental noise regulations, particularly in mixed-use development areas where residential communities border industrial zones. Acoustic cameras provide documented evidence of noise source identification and mitigation effectiveness.

Regulatory Compliance Benefits:

The automotive sector represents one of the most sophisticated users of acoustic camera technology, employing these instruments throughout the vehicle development lifecycle from initial design through production quality control.

BMW and other premium automotive manufacturers utilize acoustic cameras for comprehensive vehicle acoustic optimization, addressing both interior comfort and exterior noise emissions. These applications span multiple development phases:

Design Phase Applications:

Production Quality Control:

Advanced 3D acoustic cameras enable interior cabin mapping onto precise CAD models of vehicle interiors. This capability revolutionizes automotive acoustic engineering by revealing exactly how sound sources distribute throughout passenger compartments.

Interior Mapping Applications:

Aerodynamic noise analysis represents a critical application where acoustic cameras provide insights impossible through traditional measurement methods. Wind tunnel testing with acoustic cameras reveals the specific geometric features contributing to aerodynamic noise generation.

Key Aerodynamic Applications:

Building management and HVAC system optimization benefit tremendously from acoustic camera technology, particularly in commercial and institutional facilities where noise complaints can significantly impact operations.

HVAC system inefficiencies often manifest as acoustic anomalies before causing complete system failures. Acoustic cameras enable predictive maintenance approaches that prevent costly breakdowns while optimizing energy efficiency.

Common HVAC Issues Identified:

Compressed air systems in industrial facilities typically lose 25-30% of generated compressed air through leaks, representing substantial energy waste. Acoustic cameras operating in ultrasonic frequency ranges make these leaks instantly visible, even in noisy industrial environments.

The ultrasonic frequencies generated by high-pressure air leaks (typically 30-40 kHz) fall well within acoustic camera detection ranges, making leak identification possible even in extremely noisy industrial environments where conventional ultrasonic leak detectors fail due to background interference.

Industrial acoustic camera applications continue expanding as organizations recognize the technology's potential for predictive maintenance, energy optimization, and regulatory compliance – transforming reactive maintenance approaches into proactive asset management strategies.

While industrial applications dominate the acoustic camera market, specialized sectors have discovered unique applications that leverage this technology's distinctive capabilities. These emerging applications demonstrate the versatility of acoustic imaging beyond traditional noise control, opening new frontiers in research, environmental monitoring, and scientific investigation.

Underwater acoustic imaging represents one of the most technically challenging applications, requiring specialized equipment designed for aquatic environments where conventional optical cameras fail due to limited visibility and light penetration. These systems operate at frequencies optimized for underwater sound propagation, typically ranging from 1 kHz to 100 kHz.

Marine biologists utilize underwater acoustic cameras for non-invasive wildlife observation, enabling study of marine animal behavior without the disturbance caused by traditional underwater lighting systems. The technology proves particularly valuable for monitoring sensitive species in their natural habitats during nighttime feeding cycles or in deep-water environments where optical observation is impossible.

Offshore infrastructure inspection represents another critical marine application, where underwater acoustic cameras assess the structural integrity of oil platforms, underwater cables, and marine renewable energy installations. The technology enables detection of structural damage, marine growth accumulation, and potential failure points without requiring costly underwater vehicles or divers.

Environmental acoustic monitoring has evolved beyond simple sound level measurement to include sophisticated source identification and characterization. Acoustic cameras enable environmental consultants to provide detailed noise impact assessments that identify specific contributors to community noise pollution.

Urban Noise Mapping applications include:

Regulatory compliance applications benefit from acoustic cameras' ability to document noise sources visually, providing compelling evidence for environmental impact assessments and legal proceedings. The technology enables before-and-after comparisons demonstrating the effectiveness of noise mitigation measures.

Academic and commercial research facilities leverage acoustic cameras for fundamental acoustic research and product development applications that require precise spatial resolution and frequency analysis capabilities.

Aerospace Research Applications:

Product Development Research:

Building acoustics professionals utilize acoustic cameras for room acoustic optimization in performance venues, conference facilities, and specialized environments requiring precise acoustic control.

Concert Hall and Auditorium Applications:

Corporate and Educational Facilities:

Ecological acoustic monitoring represents an emerging field where acoustic cameras contribute to biodiversity assessment and ecosystem health monitoring. Unlike traditional wildlife observation methods that may disturb animal behavior, acoustic monitoring provides non-invasive assessment techniques.

Conservation Applications:

Research Methodology Advantages:

The specialized applications sector continues expanding as researchers and practitioners discover new ways to leverage acoustic imaging technology. These emerging applications often drive technological improvements that eventually benefit traditional industrial applications, creating a virtuous cycle of innovation and capability enhancement across the entire acoustic camera ecosystem.

Future specialized applications may include space-based acoustic monitoring, subsurface geological mapping, and integration with autonomous vehicle navigation systems – demonstrating the technology's potential for continued expansion into new domains requiring spatial acoustic intelligence.

The evolution from traditional 2D acoustic imaging to three-dimensional sound mapping represents a paradigm shift in acoustic analysis capabilities. While conventional acoustic cameras project sound sources onto flat virtual planes, 3D acoustic mapping enables visualization of complex acoustic environments onto actual object geometries, revealing spatial relationships impossible to understand through planar analysis alone.

Traditional acoustic cameras excel at identifying sound sources within a single measurement plane, but this approach creates significant limitations when analyzing complex three-dimensional objects or interior spaces. 2D planar mapping assumes all sound sources exist at the same distance from the microphone array, which rarely reflects real-world acoustic environments.

3D acoustic mapping addresses these fundamental limitations by calculating individual distances to every point on complex three-dimensional surfaces, enabling accurate acoustic visualization regardless of surface orientation, curvature, or spatial complexity.

Successful three-dimensional acoustic mapping demands specialized equipment and methodologies far beyond conventional 2D acoustic camera capabilities. The technical requirements create significantly higher complexity but enable unprecedented acoustic analysis capabilities.

Essential Hardware Requirements:

Omnidirectional Microphone Arrays: Traditional planar arrays with preferred measurement directions cannot perform undistorted 3D mapping. Spherical microphone arrays with sensors distributed uniformly across a virtual sphere provide the omnidirectional sensitivity required for three-dimensional beamforming.

Advanced Processing Power: 3D beamforming calculations require exponentially more computational resources than 2D analysis. Modern 3D acoustic cameras employ dedicated high-performance processors or GPU acceleration to perform real-time three-dimensional calculations across complex surfaces.

Precision Calibration Systems: The accuracy of 3D acoustic mapping depends critically on precise knowledge of microphone positions and orientations. Sub-millimeter positioning accuracy and precise angular calibration are essential for maintaining spatial accuracy across the entire measurement volume.

The integration of Computer-Aided Design (CAD) models with acoustic measurement data represents the cornerstone of effective 3D acoustic mapping. This fusion enables acoustic visualization onto precise geometric representations of measurement objects, providing spatial context impossible through traditional acoustic analysis.

CAD Integration Process:

Model Preparation: High-resolution CAD models typically contain hundreds of thousands of triangular surface elements, creating computational challenges for real-time acoustic analysis. Polygon reduction algorithms decrease model complexity while preserving geometric accuracy, optimizing processing speed without sacrificing measurement precision.

Spatial Registration: Achieving precise alignment between the microphone array coordinate system and the CAD model requires sophisticated photogrammetric techniques. Positioning errors as small as 2 degrees can create location errors of 7 centimeters at 2-meter distances, emphasizing the critical importance of accurate spatial registration.

Surface Mapping: Each triangular surface element in the CAD model becomes an individual acoustic measurement point, with dedicated beamforming calculations determining the acoustic signature at that specific location and orientation. This approach enables surface-normal acoustic analysis that accounts for the actual orientation of each surface element.

Interior acoustic mapping represents one of the most valuable applications of 3D acoustic camera technology, enabling comprehensive analysis of enclosed spaces where traditional external measurement approaches fail completely.

Automotive Interior Applications:

Modern vehicles require sophisticated cabin acoustic optimization to meet consumer expectations for quiet, comfortable interiors. 3D acoustic mapping reveals exactly how external noise sources penetrate the cabin and how interior equipment contributes to overall acoustic signatures.

Key Interior Mapping Capabilities:

Aircraft Interior Applications:

Commercial aircraft present unique acoustic challenges with complex interior geometries, multiple noise sources, and stringent passenger comfort requirements. 3D acoustic mapping enables comprehensive assessment of cabin acoustic environments.

Spherical array geometry represents the fundamental enabling technology for comprehensive 3D acoustic mapping. Unlike planar arrays that excel in single directions, spherical configurations provide uniform spatial sensitivity in all directions simultaneously.

Design Principles:

Uniform Spatial Sampling: Microphones distributed across a spherical surface with equal angular spacing ensure consistent acoustic sensitivity regardless of source direction. This uniform coverage eliminates the directional bias inherent in planar array designs.

Acoustic Transparency: The mechanical structure supporting the microphone array must minimize acoustic interference. Acoustically transparent materials and minimal structural elements prevent reflections and diffractions that would distort acoustic measurements.

Scalable Resolution: Spherical arrays accommodate varying microphone counts from 32 elements for basic 3D mapping to 512+ microphones for ultra-high-resolution research applications.

Technical Advantages of Spherical Arrays:

The future of 3D acoustic mapping points toward real-time virtual reality integration, where engineers can literally walk through acoustic environments wearing VR headsets, experiencing the spatial distribution of sound sources as they move through complex three-dimensional spaces. This convergence of acoustic measurement and immersive visualization technologies promises to revolutionize how we understand and optimize acoustic environments.

The sophistication of modern acoustic cameras extends far beyond their hardware capabilities – the software ecosystem and data analysis tools determine the practical value and usability of these advanced measurement systems. Understanding software capabilities becomes crucial when evaluating acoustic camera investments, as the analysis tools often differentiate between basic visualization and comprehensive acoustic intelligence.

Real-time acoustic processing represents one of the most demanding computational challenges in acoustic measurement, requiring simultaneous beamforming calculations across hundreds of measurement points while maintaining interactive response times. Modern acoustic camera software achieves this through optimized algorithms and parallel processing architectures.

Live Visualization Features:

Interactive Troubleshooting Capabilities enable technicians to observe acoustic changes immediately as they manipulate equipment, adjust settings, or implement temporary noise control measures. This real-time feedback proves invaluable for optimizing machinery operation and validating noise reduction effectiveness.

While real-time visualization provides immediate insights, comprehensive post-processing analysis unlocks the full analytical potential of acoustic camera data. Advanced software suites offer sophisticated tools for detailed acoustic investigation and reporting.

Advanced Analysis Capabilities:

Spectral Analysis Tools: Deep frequency domain analysis enables identification of specific machinery signatures, harmonic patterns, and transient acoustic events. Waterfall displays show how acoustic spectra evolve over time, revealing intermittent problems and operational cycles.

Statistical Analysis: Long-term acoustic data analysis includes percentile calculations, averaging algorithms, and trend analysis essential for environmental compliance and equipment health monitoring. Background noise subtraction algorithms isolate specific sources from complex acoustic environments.

Comparative Analysis: Software tools enable before-and-after comparisons quantifying noise reduction effectiveness, multi-location studies comparing acoustic conditions across facilities, and benchmark analysis against industry standards or regulatory limits.

Computer-Aided Design integration represents a revolutionary capability that transforms acoustic cameras from 2D visualization tools into comprehensive 3D acoustic analysis platforms. This integration enables acoustic mapping onto precise geometric representations of measurement objects.

CAD Integration Workflow:

Model Import and Preparation: Modern acoustic camera software supports industry-standard CAD formats including STL (Stereolithography), 3DS (3D Studio Max), STEP, and IGES files. Smart polygon reduction algorithms optimize model complexity for real-time processing while preserving geometric accuracy.

Spatial Registration: Sophisticated photogrammetric alignment tools enable precise positioning of acoustic data relative to CAD geometry. Reference point identification and multi-point calibration ensure sub-centimeter accuracy between acoustic measurements and geometric models.

Surface Acoustic Mapping: Each triangular surface element in the CAD model becomes an individual acoustic measurement point, with surface-normal beamforming accounting for actual surface orientations and geometric relationships.

Moving source analysis presents unique challenges requiring specialized algorithms and visualization techniques. Movie-on-movie technology synchronizes acoustic imaging with optical video, enabling comprehensive analysis of dynamic acoustic sources.

Technical Implementation:

Temporal Synchronization: High-precision trigger systems ensure microsecond-level synchronization between acoustic measurements and optical video frames. Industrial cameras provide exposure timing signals enabling frame-accurate correlation between acoustic and visual data.

Motion Compensation: Advanced algorithms account for Doppler effects in moving source analysis, correcting frequency shifts caused by relative motion between sources and measurement equipment. Predictive tracking anticipates source movement enabling continuous acoustic focus.

Adaptive Processing: Variable step-size tracking optimizes computational efficiency by adjusting processing density based on source velocity and acoustic complexity. Real-time path prediction maintains acoustic focus as sources move through complex trajectories.

Applications of Movie-on-Movie Technology:

Professional acoustic analysis requires comprehensive documentation and reporting capabilities that communicate findings effectively to diverse stakeholders. Modern acoustic camera software provides extensive export and reporting tools.

Data Export Capabilities:

Automated Report Generation:

Beamforming algorithm selection significantly impacts measurement accuracy and spatial resolution. Advanced acoustic camera software offers multiple algorithms optimized for different applications and measurement conditions.

Available Beamforming Methods:

Delay-and-Sum Beamforming: The fundamental approach providing robust performance across most applications with moderate computational requirements and reliable results in typical measurement environments.

MUSIC (Multiple Signal Classification): Super-resolution algorithms providing enhanced spatial resolution for applications requiring precise source localization, particularly effective with coherent sources and controlled environments.

DAMAS (Deconvolution Approach for the Mapping of Acoustic Sources): Deconvolution techniques removing array point-spread function effects, improving spatial accuracy particularly for distributed acoustic sources.

Clean-SC (Clean-based Source Characterization): Iterative deconvolution methods providing exceptional spatial resolution for research applications requiring maximum measurement precision.

Customization Capabilities enable users to optimize acoustic camera performance for specific applications through adjustable parameters including weighting functions, frequency response shaping, spatial resolution optimization, and noise floor adjustment. These advanced features distinguish professional acoustic camera systems from basic visualization tools, enabling optimized performance across diverse measurement scenarios.

The software ecosystem surrounding acoustic cameras continues evolving rapidly, with emerging capabilities including artificial intelligence integration, cloud-based analysis platforms, and augmented reality visualization promising to further enhance the practical value and accessibility of acoustic imaging technology.

Understanding acoustic camera pricing requires careful analysis of both initial investment costs and long-term value propositions. These sophisticated instruments represent significant capital expenditures for most organizations, making informed purchasing decisions critical for maximizing return on investment while meeting specific acoustic measurement requirements.

Entry-level acoustic cameras target industrial maintenance and general-purpose noise source identification applications where mobility and ease of use take precedence over ultimate measurement precision. These systems provide essential acoustic imaging capabilities at accessible price points for smaller organizations and specialized applications.

Typical Entry-Level Specifications:

Representative Entry-Level Models:

Limitations of Entry-Level Systems:

Professional-grade acoustic cameras serve demanding industrial, automotive, and research applications requiring exceptional measurement accuracy, extended frequency ranges, and comprehensive analysis capabilities. These systems justify their higher costs through superior performance and expanded functionality.

Professional System Advantages:

Enhanced Hardware Specifications:

Sophisticated Software Capabilities:

Acoustic camera rental provides cost-effective access to advanced measurement capabilities for organizations with occasional measurement needs or those evaluating technology before purchase. The rental market offers flexible terms accommodating diverse project requirements.

Rental Market Structure:

Daily Rental Rates: $500-1,500 per day depending on system sophistication and included support services. Premium systems with specialized capabilities command higher rates, while basic handheld units offer more accessible pricing.

Weekly/Monthly Rates: Extended rentals typically offer significant discounts, with weekly rates averaging 4-5x daily rates and monthly rates providing 15-20x daily rate value. Long-term rentals may include operator training and technical support.

Rental-to-Purchase Options: Many suppliers offer rent-to-own programs where rental payments contribute toward eventual purchase, providing a pathway for organizations to evaluate systems thoroughly before committing to ownership.

Rental vs. Purchase Decision Matrix:

Return on Investment analysis for acoustic cameras must consider both direct cost savings and indirect benefits including improved efficiency, regulatory compliance, and competitive advantages. Comprehensive ROI calculations reveal compelling business cases across most industrial applications.

Direct Cost Savings:

Maintenance Efficiency Improvements:

Energy Cost Reductions:

Indirect Benefits:

Regulatory Compliance Value:

Price variation among acoustic camera systems reflects differences in hardware sophistication, software capabilities, and manufacturer positioning. Understanding cost drivers enables informed purchasing decisions optimized for specific requirements.

Primary Cost Drivers:

Microphone Array Complexity:

Processing and Software Sophistication:

Manufacturer and Support Factors:

Cost-conscious organizations may consider alternative approaches to acoustic imaging, ranging from simplified commercial systems to do-it-yourself implementations leveraging open-source software and standard microphone hardware.

Budget Alternative Options:

Simplified Commercial Systems:

DIY Implementation Considerations:

Realistic DIY Limitations:

While DIY approaches may appear cost-effective initially, the total cost of ownership including development time, calibration efforts, and ongoing maintenance typically favors commercial solutions for professional applications. However, DIY implementations serve valuable roles in education, research, and proof-of-concept applications where ultimate measurement accuracy is less critical than understanding fundamental acoustic imaging principles.

Selecting the optimal acoustic camera requires careful evaluation of application requirements, technical specifications, and operational constraints. The diversity of available systems means that the "best" acoustic camera varies dramatically depending on specific use cases, measurement environments, and organizational needs.

Primary Application Definition forms the foundation of acoustic camera selection. Different applications demand distinct capabilities, and understanding these requirements prevents over-specification or inadequate functionality that could compromise measurement effectiveness.

Measurement Environment Assessment:

Indoor vs. Outdoor Requirements:

Source Characteristics Analysis:

Frequency response represents one of the most critical specification parameters, as inadequate frequency coverage can render acoustic cameras ineffective for specific applications. Understanding the acoustic signatures of target sources guides frequency range selection.

Standard Frequency Classifications:

Audible Range (20 Hz - 20 kHz): Covers human hearing range and most mechanical noise sources including motors, fans, compressors, and general industrial equipment. Adequate for environmental noise assessment and basic industrial applications.

Extended Low Frequency (10 Hz - 20 kHz): Includes infrasonic content from large machinery, wind turbines, and transportation sources. Essential for environmental impact assessments and large infrastructure noise analysis.

Ultrasonic Range (20 kHz - 80 kHz): Enables compressed air leak detection, electrical discharge identification, and high-frequency mechanical analysis. Critical for energy efficiency applications and electrical equipment inspection.

Source-Specific Frequency Requirements:

Rotating Machinery: Fundamental frequencies determined by rotational speed (typically 10-200 Hz) plus harmonics extending into audible range. Gearboxes add complexity with mesh frequencies often in 1-10 kHz range.

Electrical Equipment: Power frequency harmonics (50/60 Hz multiples) plus high-frequency switching noise and arcing signatures requiring ultrasonic capability for comprehensive analysis.

Aerodynamic Sources: Broadband noise with peaks related to flow velocities and geometric features. Wind noise typically concentrated in 100 Hz - 5 kHz range with occasional higher-frequency components.

Spatial resolution and measurement accuracy correlate directly with microphone array size and channel count. However, increased complexity brings higher costs and reduced portability, requiring careful optimization for specific applications.

Microphone Count Impact on Performance:

32-64 Microphones: Entry-level capability suitable for basic noise source identification. Limited spatial resolution but adequate for single-source troubleshooting and general industrial maintenance applications.

64-128 Microphones: Professional capability enabling multi-source environments and moderate spatial resolution. Suitable for most industrial applications and basic automotive testing.

128-256 Microphones: High-resolution analysis enabling precise source localization and complex acoustic environment analysis. Required for automotive development and detailed facility assessments.

256+ Microphones: Research-grade capability providing maximum spatial resolution and measurement precision. Essential for advanced 3D mapping and critical measurement applications.

Array Size Considerations:

Physical Array Dimensions determine both spatial resolution and practical usability:

Near-field vs. Far-field Optimization:

Mobility requirements often conflict with ultimate measurement capability, forcing decisions between convenience and performance. Understanding these trade-offs prevents unrealistic expectations and guides appropriate system selection.

Portability Categories:

Handheld Systems:

✅ Advantages: Single-operator capability, immediate deployment, battery operation, integrated display

❌ Limitations: Reduced microphone count, limited frequency range, basic analysis software, measurement stability challenges

Portable Systems:

✅ Advantages: Professional capability, tripod mounting, extended battery life, advanced software

❌ Limitations: Two-person setup, transport cases required, limited mobility during measurement

Laboratory/Fixed Systems:

✅ Advantages: Maximum performance, unlimited power, precision mounting, comprehensive analysis

❌ Limitations: Dedicated facility required, professional installation, limited measurement flexibility

Hybrid Solutions: Some manufacturers offer modular systems enabling field portability with laboratory performance through interchangeable components and scalable configurations.

Software capabilities often differentiate between basic visualization tools and comprehensive acoustic analysis platforms. Evaluating software features ensures long-term utility and integration with existing workflows.

Essential Software Features:

Real-time Processing:

Analysis and Reporting:

Operational expertise requirements vary dramatically between acoustic camera systems. Evaluating training needs and support availability prevents post-purchase difficulties and ensures effective system utilization.

Training Complexity Levels:

Basic Operation (Entry-level systems): Minimal acoustic background required, intuitive interfaces, immediate productivity possible with brief orientation sessions.

Professional Operation (Mid-range systems): Acoustic fundamentals helpful, dedicated training courses, 1-2 days typical learning curve for effective utilization.

Expert Operation (Research systems): Acoustic engineering background preferred, comprehensive training programs, ongoing support relationships for optimal utilization.

Support Infrastructure Evaluation:

Decision Matrix Approach:

Successful acoustic camera selection benefits from systematic evaluation using weighted decision matrices that score systems against prioritized requirements. Key evaluation categories should include:

This structured approach ensures objective evaluation while accounting for both quantitative specifications and qualitative factors that influence long-term satisfaction and return on investment.

Effective acoustic camera operation requires more than understanding technical specifications – successful measurements depend on proper setup procedures, environmental awareness, and systematic measurement approaches. Even the most sophisticated acoustic camera systems can produce misleading results when fundamental measurement principles are overlooked.

Optimal positioning represents the foundation of accurate acoustic camera measurements. Unlike point-source sound level meters, acoustic cameras require careful consideration of array orientation, distance relationships, and field-of-view optimization to achieve reliable results.

Array Positioning Fundamentals:

Distance Selection: The measurement distance significantly impacts spatial resolution and dynamic range. Near-field measurements (0.5-2 meters) provide excellent spatial resolution but limited coverage area, while far-field measurements (5+ meters) offer broader coverage with reduced detail resolution.

Optimal Distance Guidelines:

Field-of-View Optimization:

Coverage Area Planning: Acoustic cameras have finite angular coverage (typically 30-90 degrees), requiring strategic positioning to capture all relevant sources. Overlapping measurements may be necessary for comprehensive facility assessment.

Source Prioritization: Position arrays to optimize resolution for the most critical acoustic sources while ensuring secondary sources remain within the measurement field. Dynamic repositioning during measurement can address different analysis priorities.

Background Considerations: Avoid positioning arrays where background reflections or noise sources could interfere with target measurements. Acoustic shadowing from intervening objects can create measurement blind spots requiring alternative positioning.

Environmental conditions significantly influence acoustic camera performance and measurement accuracy. Understanding these factors enables appropriate measurement timing and setup modifications to ensure reliable results.

Weather and Atmospheric Effects:

Wind Impact: Wind noise represents one of the most common sources of acoustic camera measurement errors. Even moderate winds (5-10 mph) can create broad-spectrum noise that obscures target sources and distorts beamforming calculations.

Wind Mitigation Strategies:

Temperature and Humidity Effects:

Sound Speed Variations: Temperature changes affect sound propagation speed, altering the timing relationships critical for accurate beamforming. Temperature compensation algorithms in modern systems automatically adjust for these variations.

Humidity Considerations: High humidity levels can affect high-frequency acoustic propagation and microphone response. Environmental logging during measurements enables post-processing corrections when necessary.

Indoor vs. Outdoor Measurement Considerations:

Indoor Advantages:

Outdoor Challenges:

Acoustic camera calibration ensures measurement accuracy and enables traceable results comparable across different systems and measurement sessions. Proper calibration procedures are essential for professional applications and regulatory compliance.

System Calibration Components:

Microphone Channel Calibration: Each microphone channel requires individual calibration to ensure uniform response across the array. Precision acoustic calibrators generate known sound pressure levels enabling channel-by-channel verification and adjustment.

Array Geometry Verification: Microphone position accuracy critically affects beamforming calculations. Modern systems include automated geometry measurement capabilities using acoustic or optical methods to verify array dimensions and microphone locations.

Frequency Response Calibration: Broadband calibration signals verify system frequency response across the operational range. Pink noise or swept sine calibration signals reveal frequency-dependent variations requiring correction.

Calibration Frequency Requirements:

Daily Calibration: Basic system verification before each measurement session using portable acoustic calibrators to ensure stable operation and detect gross errors.

Weekly Calibration: Comprehensive frequency response verification for systems in regular use, ensuring consistent performance and identifying drift requiring correction.

Annual Calibration: Traceable laboratory calibration meeting international standards for regulatory compliance and maximum measurement accuracy.

Measurement errors in acoustic camera applications often result from systematic mistakes rather than equipment limitations. Understanding common pitfalls enables proactive avoidance and improved measurement reliability.

Setup and Positioning Errors:

Insufficient Distance: Positioning arrays too close to sources can violate far-field assumptions in beamforming algorithms, creating spatial distortions and inaccurate source localization.

Obstruction Interference: Placing arrays where structures, equipment, or personnel create acoustic shadows or reflections can produce misleading results and false source identification.

Inadequate Stability: Unstable mounting leading to array movement during measurement creates temporal variations that corrupt beamforming calculations and reduce spatial accuracy.

Measurement Technique Errors:

Background Noise Neglect: Failing to assess background noise levels can result in misattribution of ambient sources to target equipment, particularly problematic in complex industrial environments.

Frequency Range Misalignment: Using inappropriate frequency ranges for target sources can miss critical acoustic signatures or emphasize irrelevant noise components.

Insufficient Measurement Duration: Brief measurements may miss intermittent sources or fail to capture representative operating conditions, particularly important for variable-speed equipment.

Result interpretation requires understanding both acoustic camera capabilities and limitations. Proper interpretation prevents misidentification of sources and ensures accurate conclusions from measurement data.

Spatial Resolution Understanding:

Beamwidth Limitations: Acoustic cameras have finite spatial resolution determined by array size and frequency. Low-frequency sources appear spatially broader than high-frequency sources, potentially obscuring nearby sources.

Sidelobe Recognition: Beamforming algorithms create acoustic sidelobes that can appear as false sources around dominant acoustic emitters. Understanding sidelobe patterns prevents misinterpretation of secondary acoustic features.

Dynamic Range Considerations:

Noise Floor Effects: Weak acoustic sources may be obscured by system noise floors or environmental background noise. Dynamic range optimization through gain adjustment and filtering improves weak source visibility.

Source Interaction: Multiple sources in proximity can create acoustic interference patterns that complicate source separation and intensity assessment. Frequency domain analysis helps separate overlapping sources.

Temporal Interpretation:

Steady-State vs. Transient Sources: Acoustic cameras excel at steady-state source identification but may struggle with brief transient events. Appropriate averaging times balance temporal resolution with measurement stability.

Operating Condition Dependencies: Acoustic signatures often vary with equipment operating conditions. Multi-condition measurements provide comprehensive acoustic characterization across operational ranges.

Professional documentation ensures measurement reproducibility and provides compelling evidence for acoustic assessments. Systematic documentation practices support regulatory compliance and enable effective communication of findings.

Essential Documentation Elements:

Measurement Parameters:

Results Documentation:

Quality Assurance Documentation:

Effective acoustic camera operation combines technical proficiency with systematic measurement approaches. Success depends more on consistent application of proper procedures than on equipment sophistication – even basic acoustic cameras can provide valuable insights when operated according to established best practices, while advanced systems may produce misleading results when fundamental principles are ignored.

The acoustic camera industry stands at the threshold of transformative technological advances that promise to revolutionize how we visualize, analyze, and interact with sound. Emerging technologies including artificial intelligence, miniaturization, and cloud computing are converging to create unprecedented capabilities that will expand acoustic imaging applications far beyond current limitations.

Next-generation acoustic imaging transcends traditional beamforming limitations through innovative approaches that combine multiple measurement modalities and advanced signal processing techniques. These emerging trends address fundamental constraints that have historically limited acoustic camera capabilities and applications.

Multi-Modal Sensor Fusion:

Acoustic-Thermal Integration represents a significant advancement where acoustic cameras simultaneously capture thermal signatures, revealing correlations between heat generation and acoustic emissions. This dual-mode capability proves particularly valuable for predictive maintenance applications where thermal and acoustic anomalies often precede equipment failures.

Acoustic-Vibration Correlation enables comprehensive structure-borne noise analysis by combining airborne acoustic measurements with contact vibration sensors. This integration reveals transmission pathways between mechanical vibrations and radiated noise, enabling more effective noise control strategies.

Optical Flow Integration synchronizes acoustic measurements with high-speed optical analysis, enabling real-time correlation between visual motion and acoustic signatures. Applications include aerodynamic noise analysis where flow visualization directly correlates with acoustic generation mechanisms.

Advanced Visualization Techniques:

Volumetric Acoustic Rendering creates true three-dimensional acoustic visualizations that can be explored using virtual reality interfaces. Engineers wearing VR headsets can literally walk through acoustic environments, experiencing spatial sound distribution as they move through complex facilities.

Augmented Reality Overlay enables real-time acoustic visualization overlaid onto live camera feeds viewed through smartphones or AR glasses. Technicians can see acoustic "heat maps" superimposed on equipment while performing maintenance tasks, immediately identifying problematic sources.

Temporal Acoustic Animation reveals how acoustic patterns evolve over time through sophisticated animation techniques. These time-lapse acoustic movies show how noise sources change during startup sequences, load variations, or degradation processes.

Artificial Intelligence represents the most transformative force reshaping acoustic camera capabilities. Machine learning algorithms enable automated analysis, pattern recognition, and predictive insights that surpass human analytical capabilities while reducing expertise requirements for effective operation.

Automated Source Classification:

Deep Learning Recognition algorithms trained on extensive acoustic signature databases can automatically identify equipment types, operating conditions, and potential problems from acoustic images. These systems distinguish between normal operational noise and anomalous acoustic signatures indicating impending failures.

Predictive Failure Analysis combines acoustic pattern recognition with equipment history databases to predict component failures before they occur. Neural networks analyze subtle acoustic changes that precede bearing failures, motor problems, or efficiency degradation.

Intelligent Noise Source Separation uses AI algorithms to isolate individual acoustic sources from complex soundscapes automatically. This capability enables automated facility monitoring where systems continuously identify and track multiple noise sources without human intervention.

Real-Time Decision Support:

Automated Alarm Systems monitor acoustic conditions continuously, triggering alerts when specific conditions are detected. Machine learning algorithms adapt to facility-specific acoustic environments, reducing false alarms while maintaining sensitivity to genuine problems.

Optimization Recommendations use AI analysis to suggest operational adjustments that could reduce noise emissions or improve efficiency. These systems consider multiple variables simultaneously, identifying optimization opportunities invisible through traditional analysis methods.

Quality Control Integration enables automated acoustic testing in production environments where AI systems verify product acoustic compliance without human intervention, ensuring consistent quality while reducing testing costs.

Technology miniaturization driven by advances in MEMS (Micro-Electro-Mechanical Systems) microphones and embedded processing is making acoustic imaging accessible to new applications and user communities previously excluded by size, cost, or complexity barriers.

Smartphone Integration Advancement:

Mobile Acoustic Cameras leverage smartphone computational power and microphone arrays to provide basic acoustic imaging capabilities. While limited compared to professional systems, these applications enable widespread accessibility and educational applications that were previously impossible.

Wireless Sensor Networks employ distributed arrays of small, battery-powered acoustic sensors that communicate wirelessly to create facility-wide acoustic monitoring systems. These networks provide continuous monitoring at costs previously associated with single-point measurements.

Embedded System Integration places acoustic imaging capabilities directly into industrial equipment, enabling self-monitoring machinery that continuously assesses its own acoustic signature and reports anomalies automatically.

Manufacturing Cost Reduction:

Volume Production of acoustic camera components drives dramatic cost reductions as the technology transitions from specialized instrumentation to broader industrial applications. Economy of scale effects enable systems with capabilities comparable to current $50,000 units to be available for under $10,000.

Simplified Calibration procedures reduce operational complexity and ongoing costs. Self-calibrating systems using internal reference sources eliminate the need for external calibration equipment and specialized procedures.

Modular Design approaches enable users to configure systems exactly matching their requirements without paying for unnecessary capabilities. Scalable architectures allow future expansion as needs evolve.

Internet of Things (IoT) integration positions acoustic cameras as key sensors in comprehensive Industry 4.0 implementations where acoustic monitoring contributes to overall facility intelligence and optimization strategies.

Industrial IoT Integration:

Continuous Monitoring Networks deploy acoustic cameras as permanent sensors providing 24/7 facility monitoring with data integration into comprehensive facility management systems. Cloud connectivity enables remote monitoring and analysis from any location.

Predictive Maintenance Integration combines acoustic monitoring with vibration analysis, thermal monitoring, and operational data to create comprehensive equipment health assessment systems. Machine learning algorithms identify patterns across multiple data streams that indicate impending problems.

Energy Optimization Systems use acoustic monitoring to identify inefficient equipment operation and optimization opportunities. Compressed air leak detection becomes fully automated with continuous monitoring and automatic reporting of energy waste.

Digital Twin Integration:

Virtual Facility Models incorporate real-time acoustic data into comprehensive digital representations of industrial facilities. These digital twins enable simulation of proposed changes, optimization of operations, and prediction of acoustic impacts from facility modifications.

Acoustic Simulation Validation uses real-world acoustic camera measurements to validate and improve acoustic simulation models, creating more accurate predictions for facility design and noise control applications.

Consumer acoustic camera applications represent an emerging market that could democratize acoustic analysis and create new applications previously inconceivable due to cost and complexity barriers.

Residential Applications:

Home Energy Auditing enables homeowners to identify energy waste through acoustic leak detection, potentially saving thousands annually in utility costs. Consumer-grade acoustic cameras could identify air leaks, inefficient appliances, and HVAC problems.

Noise Complaint Documentation provides residents with visual evidence of noise sources affecting their properties. Smartphone-based acoustic imaging creates compelling documentation for regulatory complaints and legal proceedings.

Appliance Maintenance helps consumers identify developing problems in household equipment before failures occur. AI-powered analysis could recognize acoustic signatures indicating when appliances need service or replacement.

Professional Service Enhancement:

HVAC Contractor Tools enable service technicians to quickly identify system problems and demonstrate repair effectiveness to customers. Mobile acoustic cameras provide visual proof of problem resolution and system optimization.

Building Inspector Applications enhance property inspection capabilities by revealing hidden problems like air leaks, insulation defects, or mechanical issues not visible through traditional inspection methods.

Educational and Training:

Acoustic Education Tools make acoustic principles visible and understandable for students and training programs. Interactive acoustic imaging demonstrates concepts like sound propagation, reflection, and absorption in real-time.

Professional Development applications enable technicians and engineers to develop acoustic troubleshooting skills through hands-on experience with accessible technology.

The convergence of these technological trends promises to transform acoustic cameras from specialized instrumentation into ubiquitous tools that enhance our understanding and control of acoustic environments. Future acoustic cameras will be smaller, smarter, more affordable, and more capable than current systems while requiring less expertise to operate effectively.

Emerging applications including autonomous vehicle acoustic navigation, smart city noise monitoring, and biomedical acoustic imaging demonstrate the technology's potential to address challenges far beyond traditional industrial noise control. The next decade will likely see acoustic cameras become as common and essential as thermal cameras are today – revealing an invisible world of acoustic information that enhances safety, efficiency, and quality of life across countless applications.

An acoustic camera transforms sound into something visible, allowing users to locate and measure noise sources with accuracy and speed. Through the use of microphone arrays and beamforming technology, it delivers critical insight for noise reduction, fault detection, and product development. As demand for quieter, more efficient environments grows, acoustic cameras are becoming an indispensable asset in modern engineering.

Acoustic cameras represent a paradigm shift in how we visualize, understand, and control sound in our environment. By transforming invisible acoustic energy into intuitive visual maps, this technology has revolutionized noise source identification across industries ranging from manufacturing and automotive to environmental consulting and marine research. What once required hours of detective work with traditional sound meters can now be accomplished in minutes with the point-and-shoot simplicity of taking a photograph.

The evolution from basic 2D acoustic imaging to sophisticated 3D mapping capabilities, AI-powered analysis, and real-time moving source tracking demonstrates the technology's rapid advancement and expanding potential. Key technological breakthroughs including beamforming algorithms, omnidirectional microphone arrays, and CAD model integration have created measurement capabilities that were unimaginable just a decade ago.

For organizations considering acoustic camera investments, the value proposition extends far beyond simple noise measurement. These systems enable predictive maintenance strategies that prevent costly equipment failures, energy optimization through compressed air leak detection that can save tens of thousands annually, and regulatory compliance documentation that protects against environmental violations. Case studies consistently demonstrate return on investment periods of 6-12 months, with ongoing benefits that compound over years of operation.

The market landscape offers solutions for every application and budget, from entry-level handheld units starting at $15,000 that democratize acoustic imaging for small organizations, to research-grade systems exceeding $100,000 that provide unprecedented measurement precision for critical applications. Rental options make even the most sophisticated systems accessible for specific projects, while modular designs enable capability expansion as needs evolve.

Critical success factors for acoustic camera implementation include proper application matching, adequate training, and systematic measurement procedures. The technology's intuitive nature can be deceptive – while basic operation appears simple, achieving reliable results requires understanding of acoustic principles, environmental effects, and proper interpretation techniques. Organizations investing in comprehensive training and ongoing support relationships achieve significantly better outcomes than those treating acoustic cameras as simple point-and-shoot devices.

Looking toward the future, emerging trends including AI integration, IoT connectivity, and smartphone applications promise to further expand acoustic camera accessibility and capabilities. Machine learning algorithms will automate expert-level analysis, wireless sensor networks will enable facility-wide monitoring, and augmented reality interfaces will overlay acoustic information directly onto equipment during maintenance operations.

The transformation from reactive maintenance approaches to proactive acoustic monitoring represents a fundamental shift in how organizations manage equipment health and environmental compliance. Acoustic cameras serve as the enabling technology for this transition, providing the spatial acoustic intelligence necessary for data-driven decision making.

Whether you're an engineer evaluating noise control solutions, a facility manager seeking operational optimization, or a consultant expanding service capabilities, acoustic cameras offer proven technology with immediate practical benefits and long-term strategic value. The key lies in matching system capabilities to specific requirements, investing in proper training, and implementing systematic measurement procedures that ensure reliable, actionable results.

As acoustic camera technology continues evolving and costs decrease, these powerful visualization tools will become as commonplace as thermal cameras are today – revealing an invisible acoustic world that enhances safety, efficiency, and quality of life across countless applications. The organizations that embrace this technology today position themselves at the forefront of acoustic intelligence and operational excellence.
